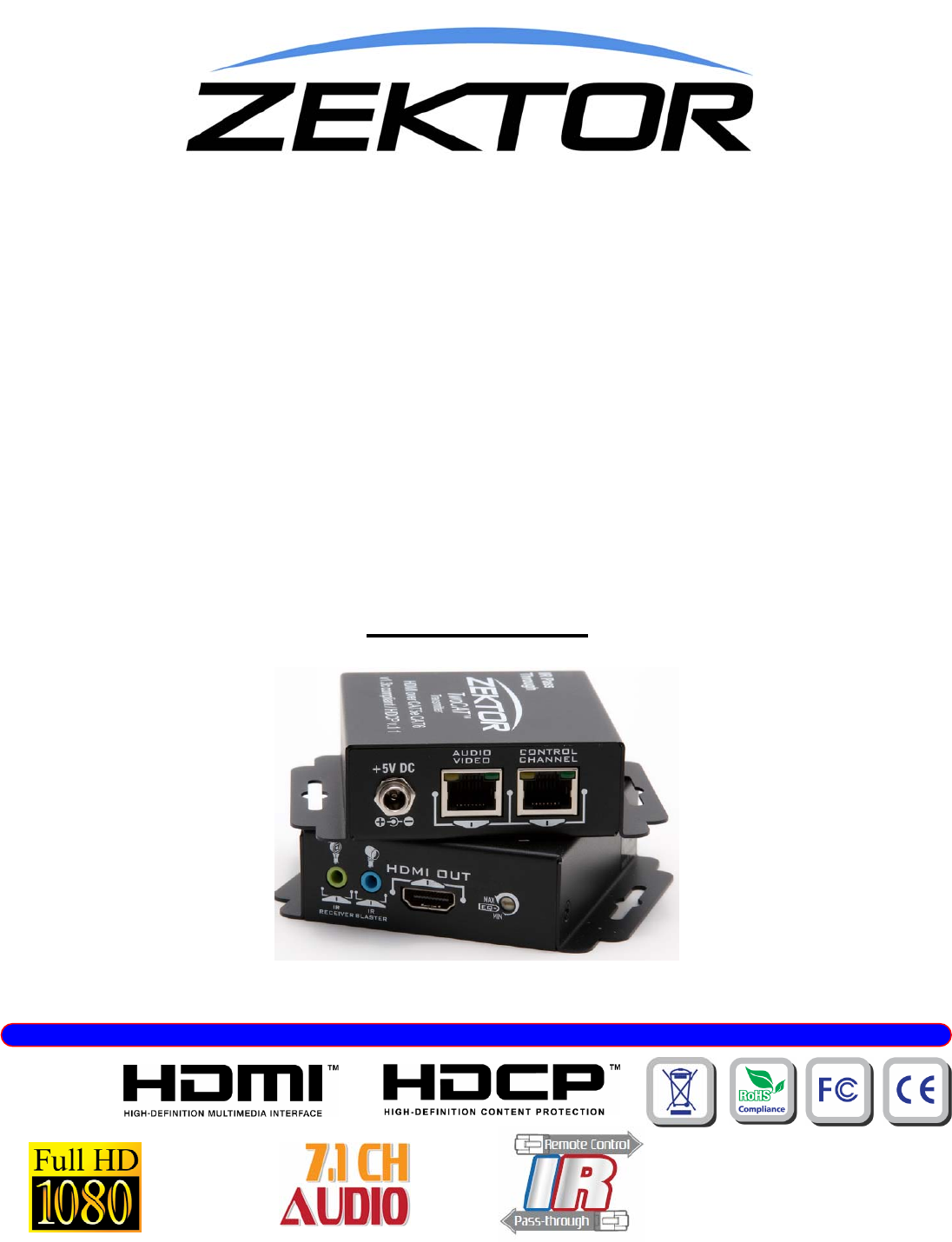

 Zektor 2CAT™ Z57BD2C HDMI™ 1.3 over CAT5 Extender with Bi-directional IR Pass-through UserManualAssembled in the USA Designed by yo

Notice 1. If the DVI or HDMI™ device requires the EDID information, please use EDID Reader/Writer to retrieve and provide EDID information of the DVI

Limited Warranty Zektor Incorporated warrants the Z57BD2C HDMI 1.3c over CAT5e/6 extender with Bi-directional IR Pass-through to be free from defects

SafetyandNoticeThe Zektor 2CAT™ Z57BD2C HDMI™ 1.3c over CAT5e/6 extender with Bi-directional IR Pass-through has been tested for conformance to sa

Introduction The Zektor 2CAT™ Z57BD2C HDMI™ 1.3c over CAT5e/6 extender with Bi-directional IR Pass-through boosts up your HDMI transmission distance u

Specifications&PackageContents Model Name Z57BD2C Technical Z57BD2C [TX] Z57BD2C [RX ] Role of usage Transmitter

Panel DescriptionsFrontPanel—TransmittingUnitZ57BD2C[TX] 1. IR Receiver: Infrared 3.5mm socket for plugging in the extension ca

FrontPanel—ReceivingUnitZ57BD2C[RX] 6. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver. 7. IR

Pin Definition HDMI™ Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 SCL Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 SDA P

IR Pass-through IR Blaster IR Receiver IRSockets IR Blaster: Plug in the IR blaster here to emit all IR command si

Hardware Installation !! MAKE SURE YOU CONNECT THE IR CONNECTIONS CORRECTLY !! 1. Connect your HDM™I or DVI source (such as a Blu-ray Disc player)
